Tools tab



Introduction

It is even possible to replace of ignore Tools. To be able to select a replacement Tools, we use Collections. A Collection is a pool of Tools that wille never be executed in the order they are defined, but they only exist to be selected as replacement of another Tool, by Alias technique.

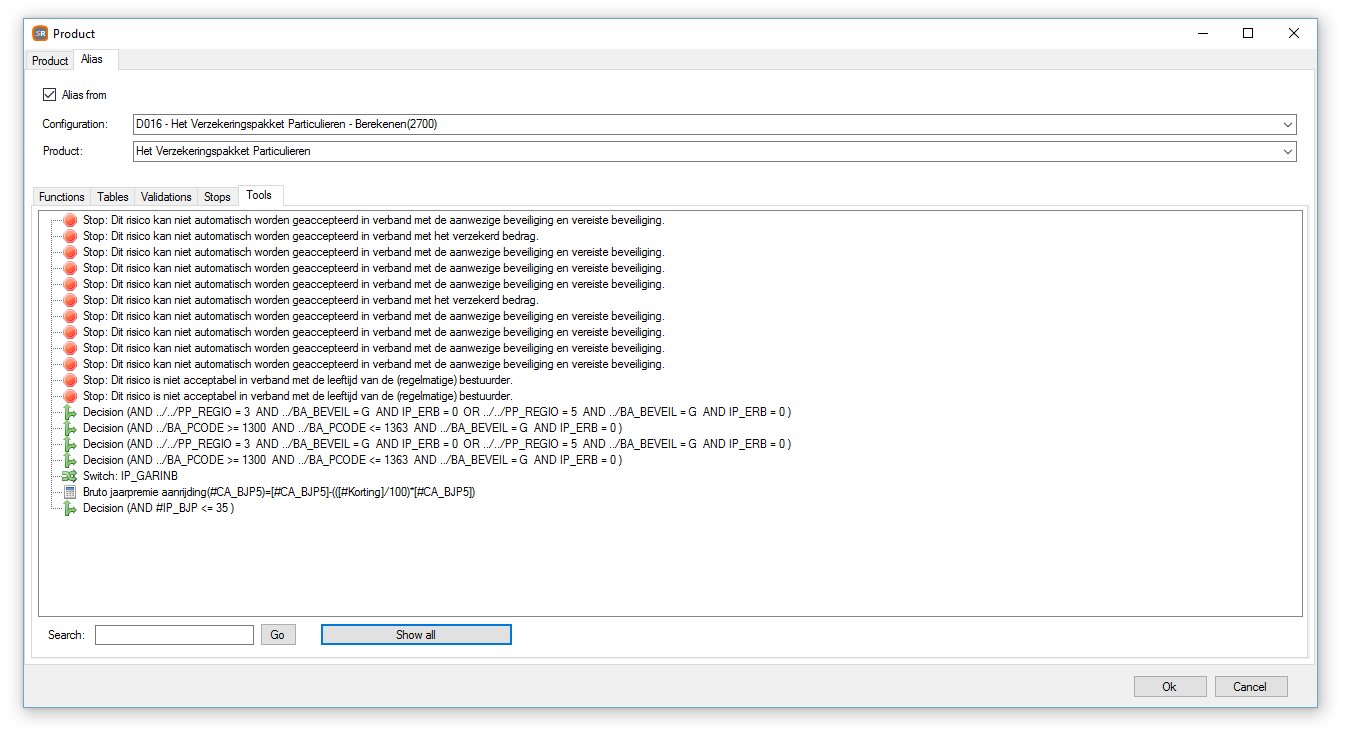

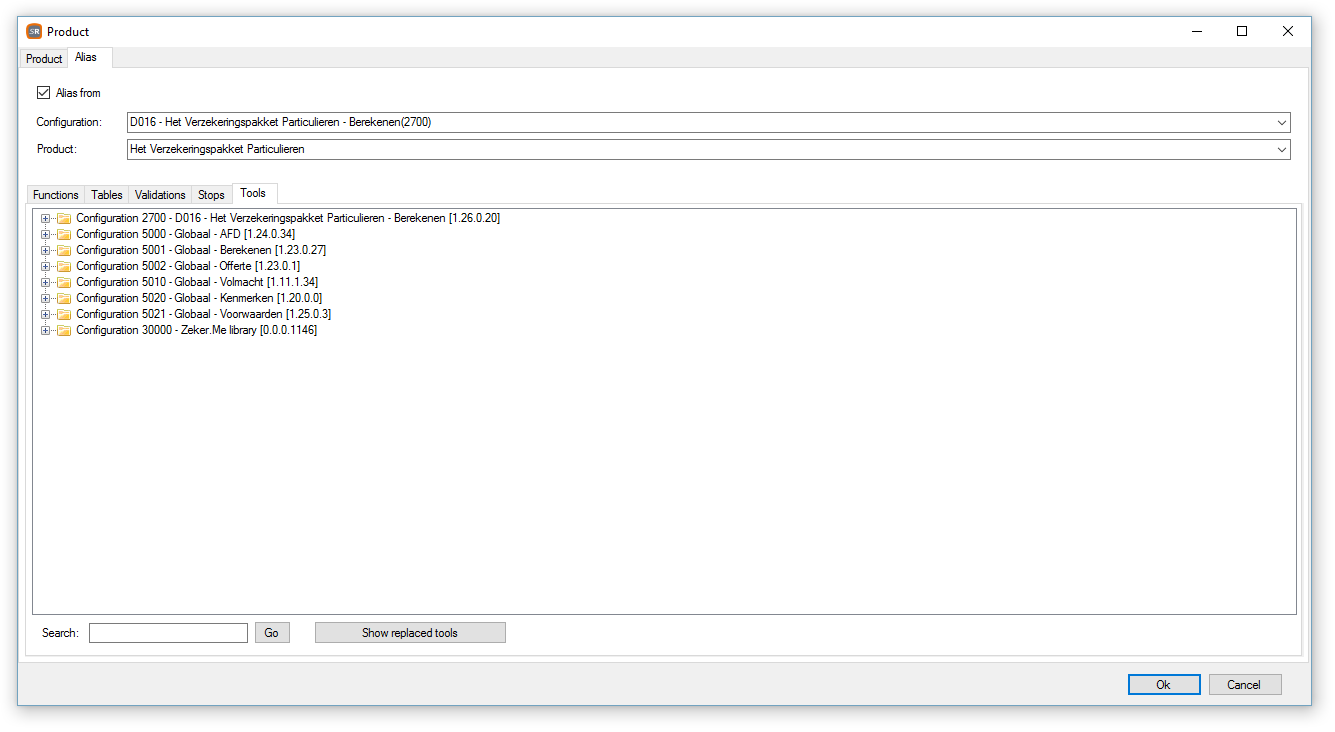

Show replaced tools / Show all button

Using this button you can switch from all Tools, to replaced Tools. Replaced Tools are connected to an Alias item.

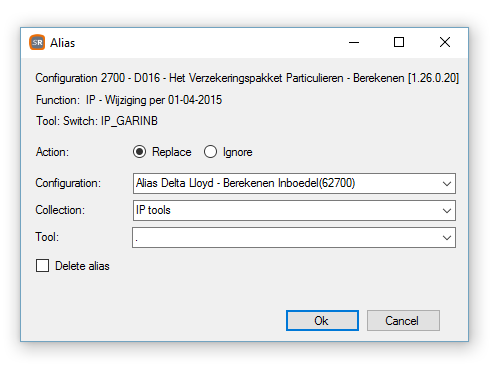

After doubleclicking a Tool, the Alias item popup appears.


Replace

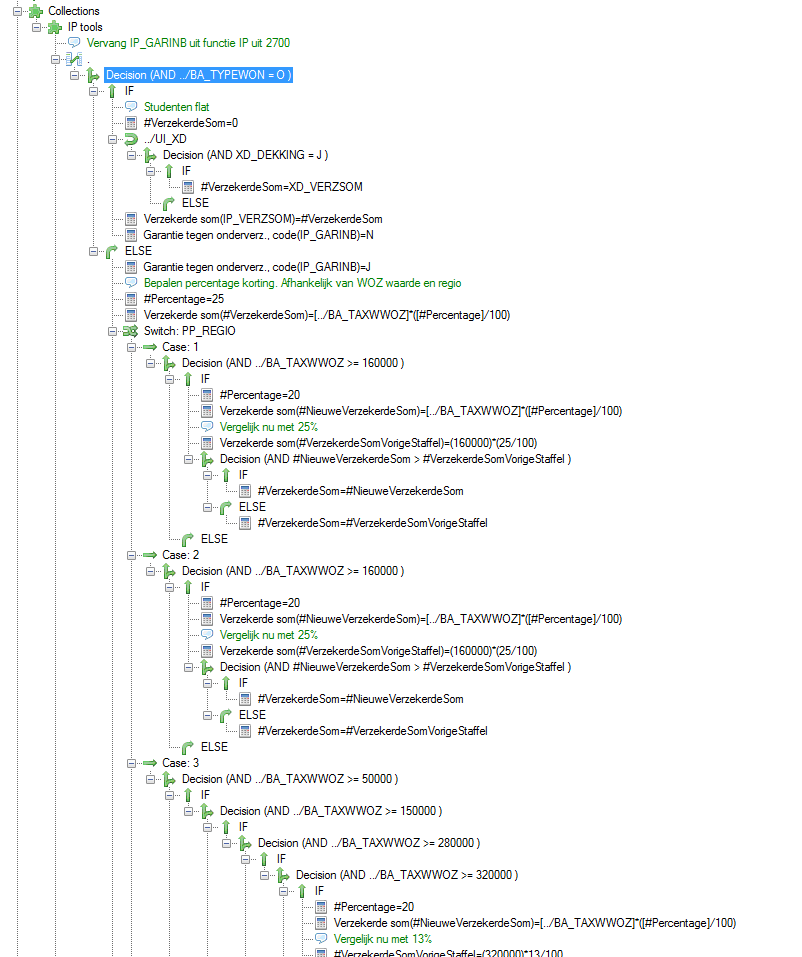

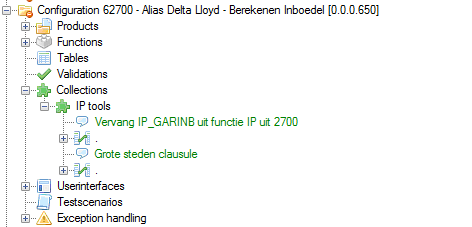

Replaces a Tools with another Tool. The above example shows a collection 'IP tools'. This example Collection looks as follows:


The Tool dropdown shows only the Text of the selected Tool. In this case it is a Node in the current path, so Text only contains a dot (.).

Tip!
Place a Comment above every Tool in Collections. This way it is easy to select the correct Tool.


Tip!
When you want to replace a single Tool by a number of Tools, use a Node. Below this Node you can execute a number of Tools. See below.



Ignore

Don't execute the Tool.


Delete Alias item

By checking this an existing Alias item for this Tool will be removed.
