ADDMONTHS
|
|
|
ADDMONTHS(date; months)
Adds months to date.
Example:
ADDMONTHS(2009/3/20;6)
Result: 2009/9/20
|
|
●
|
AGE
|
|
|
AGE(date)
Returns age in years of date using today as a reference.
Example:
AGE([BS_GEBDAT])
Result: 35 (depending on BS_GEBDAT and the current date)
|
|
●
|
AGEAT
|
|
|
AGEAT(date; referencedate)
Returns age in years of date using referendedate as a reference.
Example:
AGE([Birthday];[Startdate])
Result: 35 (depending on Birthday and Startdate obviously)
|
|
●
|
CHANGED
|
|
|
CHANGED(elementname)
Returns True or False if the value of elementname is changed since the last Begin Transaction.
Example:
CHANGED(Premium)
Result: True
CHANGED(elementname; elementnametostorepreviousvalue)
Returns True or False if the value of elementname is changed since the last Begin Transaction and writes the previous value to elementnametostorepreviousvalue.
Example:
CHANGED(Premium; #PreviousValue)
Result: True (and #PreviousValue contains the previous value)
|
|
●
|
CHILDCOUNT
|
|
|
CHILDCOUNT(path)
Returns the number of childnodes below path.
Example:
CHILDCOUNT(Importdemo)
Result: 3
|
|
●
|
CHR
|
|
|
CHR(Unicode)
Returns a character by its Unicode value (in Hexadecimal format).
Example:
CHR(0000D)
Result: <CR>
Or:
Example:
CHR(D83DDE04)
Result: 😄
|
|
●
|
COMPUTERNAME
|
|
|
COMPUTERNAME()
Returns the name of the system that runs SoftRules® .
Example:
COMPUTERNAME()
Result: CMPSVR17
|
|
●
|
CONFIGID
|
|
|
CONFIGID()
Example:
CONFIGID()
Result: 10
|
|
●
|
CONTAINS
|
|
|
CONTAINS(string; substring)
Returns True if substring is a part of string, otherwise False.
Example:
CONTAINS(Toyota Avensis; Avensis)
Result: true
|
|
●
|
COS
|
|
|
COS(value1)
Returns the cosine of value1.
Example:
COS(90)
Result: 0
|
|
●
|
CURRENTPATH
|
|
|
CURRENTPATH()
Returns the current position within the XML document.
Example:
CURRENTPATH()
Result: CustomerDocument/CustomerWrapper/Insured
|
|
●
|
DATASETID
|
|
|
DATASETID()
Returns the ID of the current Dataset.
Example:
DATASETID()
Result: 1
|
|
●
|
DATE2EPOCH
|
|
|
DATE2EPOCH(date)
Returns date in Epoch format.
Example:
DATE2EPOCH(1970/1/1)
Result: 0
Or:
DATE2EPOCH(2016/2/4)
Result: 1454544000
|
|
●
|
DAY
|
|
|
DAY(date)
Returns the day from date.
Example:
DAY(2009/3/20)
Result: 20
|
|
●
|
DAYOFWEEK
|
|
|
DAYOFWEEK(date)
Returns the day of the week as a number 0 to 6 (stands for Sunday to Saturday)
Example:
DAYOFWEEK(NOW())
Result: 3
|
|
●
|
DAYS360
|
|
|
DAY360(startdate; enddate)
Calculates the number of days between startdate and enddate based on a year with 12 months of 30 days.
Example:
DAY360(2016/1/1; 2016/7/1)
Result: 180
|
|
●
|
DAYSBETWEEN
|
|
|
DAYSBETWEEN(startdate; enddate)
Returns the number of days between startdate and enddate.
Example:
DAYSBETWEEN(2016/1/1; 2016/7/1)
Result: 182
|
|
●
|
DECREASED
|
|
|
DECREASED(elementname)
Returns True is elementname is decreased since the last Begin transaction. Otherwise False.
Example
DECREASED(Premium)
Result: True
|
|
●
|
DELETED
|
|
|
DELETED(elementname)
Returns True if elementname is deleted since the last Begin Transaction. Otherwise False.
Example:
DELETED(Premium)
Result: True
|
|
●
|
E (mathematical constant)
|
|
|
E()
Returns e.
Example:
E()
Result: 2,71828182845905
|
|
●
|
ENVVAR
|
|
|
ENVVAR(envvarname)
Returns the environment variable with name envvarname.
Example:
ENVVAR(SystemRoot)
Result: C:\WINDOWS
|
|
●
|
EPOCH2DATE
|
|
|
EPOCH2DATE(epochdate)
Returns the date belonging to a epochdate (in Epoch format).
Example:
EPOCH2DATE(1454544000)
Result: 2016/2/4
|
|
●
|
EXIST
|
|
|
EXIST(elementname)
Returns True if the element with name elementname exists on this location in the XML.
Example:
EXIST(Premium)
Result: True
|
|
●
|
Format
|
|
|
Format(value; formatstring)
Resturns the formatted value of value, formatted with formatstring. For examples of formatstrings, see: msdn.microsoft.com
Format(1.123456;####.##)
Result: 1.12
Or:
Format (1.123456; C)
Result: $ 1.12
(Depending on system currency settings)
|
|
●
|
GUID
|
|
|
GUID()
Returns a Globally unique identifier.
Example:
GUID().xml
Result: c7b794dc37984473b57cf789c2cd759d.xml
|
|
●
|
HASH
|
|
|
HASH(string)
Returns a hashed version of string.
Example:
HASH(This line of text will be hashed)
Result: A93148E6CDA7FEFF2EC62920D24ED075533DDD99E10C018BEEE46D7CFE0887EE
|
|
●
|
IIF
|
|
|
IIF(expression; truepart; falsepart)
Immediate If, where:
expression is a subformula resulting in a logical operator.
truepart is the part that will returned if expression returns True.
falsepart is the part that will be returned if expression returns False.
Example:
IIF(2=3; this is true; this is not true)
Result: this is not true
|
|
●
|
INCREASED
|
|
|
INCREASED(value)
Returns True if value is increased since the last Begin transaction. Otherwise returns False.
Example:
INCREASED(Premium)
Result: True
|
|
●
|
INDEXOF
|
|
|
INDEXOF(string; substring)
Returns the starting position of substring in string. The first character stands on position 0.
Result:
INDEXOF(Toyota Avensis; Avensis)
Result: 7
|
|
●
|
INTRODUCED
|
|
|
INTRODUCED(elementname)
Returns True if elementname is introduced after the last Begin transaction. Otherwise returns False.
Example:
INTRODUCED(Premium)
Result: True
|
|
●
|
IPMT
|
|
|
IPMT(rate; per; nper; pv, fv)
Returns the interest payment for a given period per for an investment based on periodic, constant payments and a constant interest rate.
rate: The interest rate per period.
per: The period for which you want to find the interest and must be in the range 1 to nper.
nper: The total number of payment periods in an annuity.
pv: The present value, or the lump-sum amount that a series of future payments is worth right now.
fv: The future value, or a cash balance you want to attain after the last payment is made.
Example:
IPMT(0,032;1;30;300000;0)
Result: 9600
and:
IPMT(0,032;30;30;300000;0)
Result: 486,95
|
|
●
|
ISBLANK - Is dit leeg?
|
|
|
ISBLANK(value)
Returns True if value is empty. Otherwise returns False.
Example:
ISBLANK([Premium])
Result: True
|
|
●
|
ISDATE
|
|
|
ISDATE(value)
Returns True is value is a valid date. Otherwise returns False.
Example:
ISDATE(2016/1/1)
Result: True
Or:
ISDATE(nodate)
Result: False
|
|
●
|
ISLOGICAL
|
|
|
ISLOGICAL(value)
Returns True if value is of type Boolean. Otherwise returns False.
Example:
ISLOGICAL(true)
Result: True
Example:
ISLOGICAL(abc)
Result: False
|
|
●
|
ISNUMBER
|
|
|
ISNUMBER(value)
Returns True if value is an integer or decimal number. Otherwise returns False.
Example:
ISNUMBER([Premium])
Result: True
|
|
●
|
LASTELEMENTWILDCARD
|
|
|
LASTELEMENTWILDCARD()
Returns the last used value in a wildcard.
Example:
LASTELEMENTWILDCARD([Relatiedocument/Pakket/Onderdeel/PP/OB/WA/*_BTP])
Result: WA
(Example from Dutch AFD standard. At this spot stands an element named WA_BTP. So the wildcard is replaced with WA)
|
|
●
|
LASTINDEXOF
|
|
|
LASTINDEXOF(string; searchstring)
Returns the last position of searchstring in string.
Example:
LASTINDEXOF(This line of text contains two times the word text;text)
Result: 46
The first position of string is 0, see below.
This line of text contains two times the word text
00000000001111111111222222222233333333334444444444
01234567890123456789012345678901234567890123456789
|
|
●
|

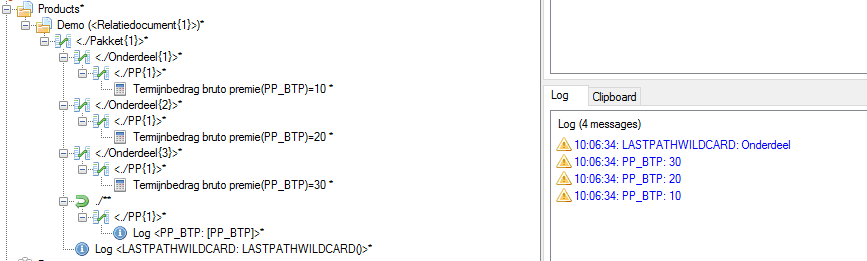

LASTPATHWILDCARD
|
|
|
LASTPATHWILDCARD()
Returns the last used path in a wildcard.
Example:
LASTPATHWILDCARD()
Result: Onderdeel
|
|
●
|
LEFT
|
|
|
LEFT(string; length)
Returns the first part of string with a length of length.
Example:
LEFT(Comparity; 4)
Result: Comp
|
|
●
|
LENGTH
|
|
|
LENGTH(string)
Returns the number of character that the given string is long.
Example:
LENGTH(Comparity)
Result: 9
|
|
●
|
LOWER
|
|
|
LOWER(string)
Returns all characters from the given string in lowercase.
Example:
LOWER(Comparity)
Result: comparity
|
|
●
|
LOG – Natural logarithm
|
|
|
LOG(number)
Returns the natural logarithm of number.
Example:
LOG(100)
Result: 4,605
|
|
●
|
LOG10
|
|
|
LOG(number)
Returns the base-10 logarithm of a number.
Example:
LOG10(100)
Result: 2
|
|
●
|
MAX
|
|
|
MAX(value1; value2)
Returns the maximum of value1 and value2.
Example:
MAX(3;4)
Result: 4
MAX(3;MAX(4;5))
Result: 5
|
|
●
|
MEMORY
|
|
|
MEMORY()
Returns the amount of memory in use by SoftRules® in kb.
Example:
MEMORY()
Result: 285696
|
|
●
|
MIN
|
|
|
Min(value1; value2)
Returns the minimum of value1 and value2.
Example:
MIN(3;4)
Result: 3
MIN(3;MIN(4;5))
Result: 3
|
|
●
|
MONTH
|
|
|
MONTH(date)
Returns the month of date.
Example:
MONTH(2009/3/20)
Result: 3
|
|
●
|
NOT
|
|
|
NOT(value)
Returns the logical opposite of value.
Example:
NOT(True)
Result: False
|
|
●
|
NOW
|
|
|
NOW()
Returns the current date and time.
Example:
NOW()
Result: 23-03-2009 12:03:00
|
|
●
|
ORIGINALVALUE
|
|
|
ORIGINALVALUE(elementname)
Example:
ORIGINALVALUE(Premium)
Result: 100
|
|
●
|
PATHCHANGED
|
|
|
PATHCHANGED(path)
Returns True if a value in path has been changed in relation to the input XML document. Otherwise returns False.
Example:
PATHCHANGED(CustomerDocument/Contract/Policy)
Result: False
|
|
●
|
PI
|
|
|
PI()
Returns pi.
Example:
PI()
Result: 3,14159265358979
|
|
●
|
PMT
|
|
|
PMT(rate; nper; pv; fv)
Calculates the payment for a loan (pv) based on constant payments and a constant interest rate.
rate: The interest rate per period.
nper: The total number of payment periods in an annuity.
pv: The present value, or the lump-sum amount that a series of future payments is worth right now.
fv: The future value, or a cash balance you want to attain after the last payment is made.
Example:
PMT(0,032;30;300000;0)
Result: 15704,11
(is the value per year for a loan of 300.000 and a total period of 30 years, with an interest of 3,2% and an endvalue of 0)
|
|
●
|
POW
|
|
|
POW(x;y)
Returns x to the power of y. Same as x^y.
Example:
POW(2;3)
Result: 8
|
|
●
|
PPMT
|
|
|
PPMT(rate; per; nper; pv, fv)
Returns the payment on the principal for a given period for an investment based on periodic, constant payments and a constant interest rate.
rate: The interest rate per period.
per: The period for which you want to find the interest and must be in the range 1 to nper.
nper: The total number of payment periods in an annuity.
pv: The present value, or the lump-sum amount that a series of future payments is worth right now.
fv: The future value, or a cash balance you want to attain after the last payment is made.
Example:
PPMT(0,032;1;30;300000;0)
Result: 6104,11
and:
PPMT(0,032;30;30;300000;0)
Result: 15217,16
|
|
●
|
RANDOM
|
|
|
RANDOM(valuemin; valuemax)
Returns a random number between valuemin and valuemax.
Example:
RANDOM(1;100)
Result: 55
|
|
●
|
REGEX
|
|
|
REGEX(input; pattern)
En regulair expression is a means to describe a pattern in a text (or element). The result will be True or False. The syntax of regulair expressions can be found here : www.regular-expressions.info
Example (to check if a value follows the rules of a Dutch zipcode):
REGEX([Zipcode];[0-9][0-9][0-9][0-9] [A-Z][A-Z])
Result: True
Or:
REGEX([Zipcode];^{d4}[A-Z]{2}$)
Result: True
|
|
●
|
REPLACE
|
|
|
REPLACE(string; substring1; substring2)
Replaces substring1 with substring2 in the given string.
Example:
REPLACE(22,95;,;.)
Result: 22.95
|
|
●
|
RIGHT
|
|
|
RIGHT(string; length)
Returns the right part of a string with the given length.
Example:
RIGHT(Comparity; 4)
Result: rity
|
|
●
|
SIN
|
|
|
SIN(value)
Returns the sine of value.
Example:
SIN(90)
Result: 1
|
|
●
|
SPLIT
|
|
|
SPLIT(string; separator; index)
Returns the value out of string, standing on position index if we seen string as an array where items are separated by separator.
Example:
SPLIT(Comparity,Rijtuigweg,12,Bergen op Zoom,+31164257800,support@comparity.nl;,;6)
Result: support@comparity.nl
|
|
●
|
SPLITCOUNT
|
|
|
SPLITCOUNT(string; separator)
Returns the number of items in string if we see string as an array where the items are separated by separator.
Example:
SPLITCOUNT(Comparity,Rijtuigweg,12,Bergen op Zoom,+31164257800,support@comparity.nl;,)
Result: 6
|
|
●
|
SQRT
|
|
|
SQRT(value)
Returns the square root of value.
Example:
SQRT(9)
Result: 3
|
|
●
|
SUBSTR
|
|
|
SUBSTR(string; start; length)
Returns a part of string. The position of the first character is indicated with the start parameter. The number of characters with the length parameter. The first character stands on position 0.
Example:
SUBSTR(Comparity; 6; 2)
Result: it
SUBSTR(Comparity; 0; 4)
Result: Comp
|
|
●
|
TEXTVALUE
|
|
|
TEXTVALUE(elementname)
Returns the Text value of elementname only if this element is coupled to a TextValue.
Example:
TEXTVALUE(OB_BRANSTO)
Result: Diesel
(OB_BRANSTO is part of the Dutch AFD standard and contains the codes B, D en G for Benzine, Diesel en LPG, in this example it contains the value D)
|
|
●
|
TIME
|
|
|
TIME()
Returns the current time.
Example:
TIME()
Return: 12:03:00
|
|
●
|
TODAY
|
|
|
TODAY()
Returns the current date.
Example:
TODAY()
Returns: 2009/3/27
|
|
●
|
TRIM
|
|
|
TRIM(string)
Returns string with all leading and trailing spaces removed.
Example:
[STRING1]+[STRING2]
Return: Comparity SoftRules
Trim([STRING1])+ [STRING2]
Returns: Comparity SoftRules
|
|
●
|
UPPER
|
|
|
UPPER(string)
Returns string in uppercase.
Example:
UPPER(Comparity)
Returns: COMPARITY
|
|
●
|
UPPERFIRST
|
|
|
UPPERFIRST(string)
Returns string with the first character in uppercase.
Example:
UPPERFIRST(comparity)
Returns: Comparity
|
|
●
|
UPPERWORDS
|
|
|
UPPERWORDS(string)
Returns string with every first character of each word in uppercase.
Example:
UPPERWORDS(the quick brown fox jumps over the lazy dog)
Returns: The Quick Brown Fox Jumps Over The Lazy Dog
|
|
●
|
VERSION - SoftRules Versie
|
|
|
VERSION()
Returns the SoftRules® version.
Example:
VERSION()
Returns: 2.0.0.0
|
|
●
|
XMLROOT
|
|
|
XMLROOT()
Returns the name of the root element of the Out XML Document.
Example:
XMLROOT()
Returns: CustomerDocument
|
|
●
|
XPATH
|
|
|
XPATH(xpathexpression)
Returns the value of the first node of an xpath expression xpathexpression.
Example:
XPATH(//Premium)
Returns: 100
|
|
●
|
YEAR
|
|
|
YEAR(date)
Returns the year of date.
Example:
YEAR(2009/3/29)
Returns: 2009
|
