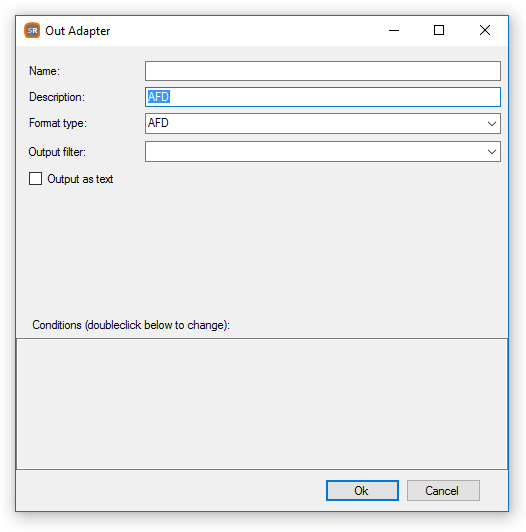

The name of the Out Adapter. Using this name the Adapter can be coupled to a Port in the Server.
Description
The description of the Out Adapter. For example 'Backoffice Adapter' or 'Document adapter'.
Format Type
Select the Format Type to use to format the XML against before it is sent back to the client. Suppose your configurations are working with a date format 'dd-MM-yyyy' but your Output XML should contain a 'yyyyMMdd' format, you should chose a correct Format Type to translate the internal date format to the external date format.
Output Filter
You can use a Userinterface as an Output filter. Select a Userinterface at this location to do so. All elements used in the Userinterface are being passed through the Output XML, the rest is filtered out.
Output as text
If you check Output as text, elements that are coupled with a TextValue will not output their Value, but their Text counterpart. Also elements that have a Unit coupled will have the Unit Text as a postfix.
Conditions
Declare the Conditions to be valid to pass the Output XML to the client. No Conditions means 'True'.
